Application

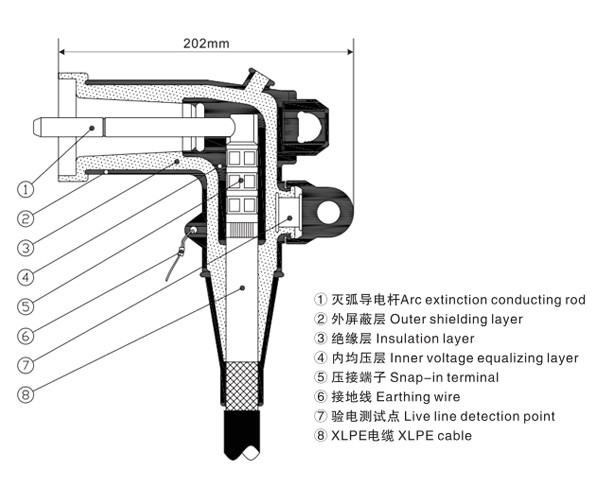

● Through the 200A prefabricated elbow cable joint and the matching 200A bushing connection, single-phase or three-phase cables can be connected to switch cabinets, transformers, cable junction boxes and other electrical equipment.

● Suitable for indoor or outdoor installation.

● The highest system working voltage: 15kV.

● Continuous rated current: 200A.

● Cable characteristics:

-Extruded insulated power cable (XLPE, EPR, etc.)

-Cable conductor section: 35~ 150mm²

Characteristic

● When matched with a suitable casing, a fully shielded and fully sealed separable connection can be provided.

● It can be used in underwater or other harsh environments for a long time.

● There is no minimum phase distance requirement.

● It can be installed horizontally, vertically or at any angle.

● The elbow joint has a built-in capacitance test point, and a live indicator can be installed to display the line status.
