Application

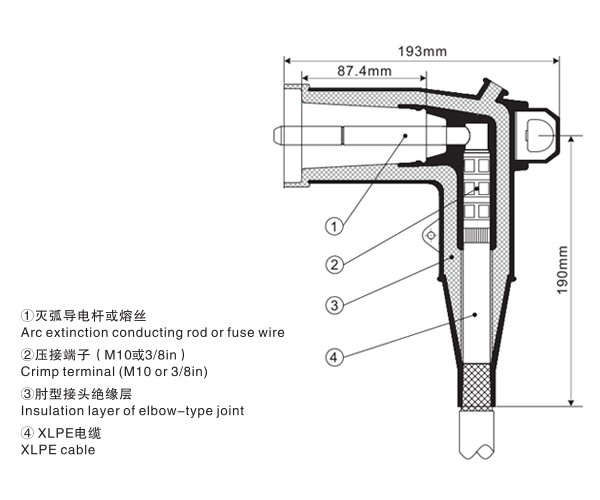

● Through the 200A prefabricated elbow cable joint and the matching 200A bushing connection, single-phase or three-phase cables can be connected to switch cabinets, transformers, cable junction boxes and other electrical equipment.

● Suitable for indoor or outdoor installation.

● The highest system working voltage: 25kV.

● Continuous rated current: 200A.

● Cable characteristics:

- Extruded insulated power cable (XLPE, EPR, etc.)

- Cable conductor section: 35~ 120mm²

Characteristic

● It can be installed with JDZ12A-10R series voltage transformer.

● When matched with a suitable casing, a fully shielded and fully sealed separable connection can be provided.

● It can be used in underwater or other harsh environments for a long time.

● There is no minimum phase distance requirement.

● It can be installed horizontally, vertically or at any angle.

● When matched with a voltage transformer, the factory "does not have a conductive rod."
