Application

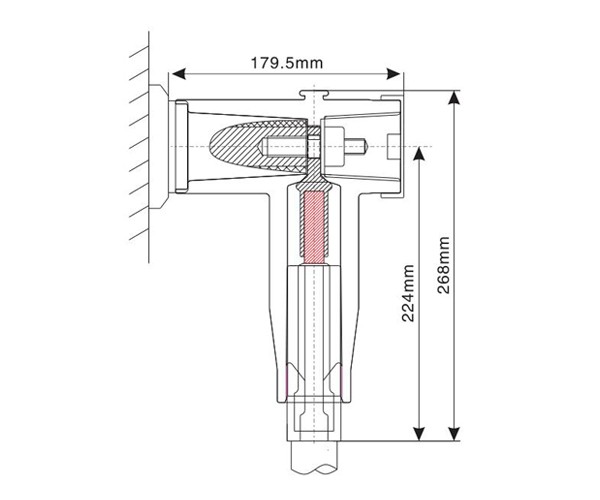

· Through the 630A prefabricated cable front connector, single-phase or three-phase cables can be connected to switch cabinets, transformers, cable junction boxes and other electrical equipment.

· Suitable for indoor or outdoor installation.

· Casing interface standard: Type C

· Continuous rated current: 630A

· It can be extended to connect DHJ type rear connector or HBLQ type arrester to realize multi-channel installation or provide over-voltage protection.

· Cable characteristics:

-Extruded insulated power cable (XLPE, EPR, etc.)

-Cable conductor section: 35 ~ 400mm²

-Cable conductor type: copper core or aluminum core

Characteristic

· When matched with a suitable casing, a fully shielded and fully sealed separable connection can be provided.

· It can be used in underwater or other harsh environments for a long time.

· It can be installed horizontally, vertically or at any angle without minimum distance between phases.

· It can be touched with electricity and is safe for humans and animals.
