Application

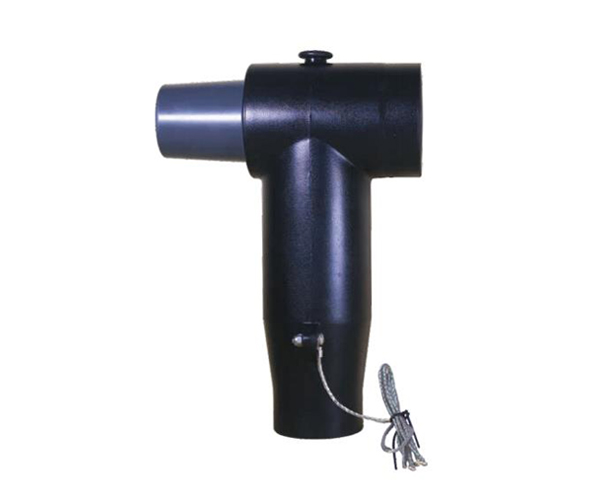

· Through the expansion connection with the 630A prefabricated cable front connector, it can realize the multi-channel incoming and outgoing ring network connection of single-phase or three-phase cables with switch cabinets, transformers, cable junction boxes and other electrical equipment.

· Suitable for indoor or outdoor installation.

· The highest system working voltage: 17.5kV.

· Continuous rated current: 630A.

· Extendable connection type rear connector or HBLQ type arrester to realize multi-channel installation or provide over-voltage protection.

· Cable characteristics:

-Extruded insulated power cable (XLPE, EPR, etc.)

-Cable conductor section: 35~400mm²

-Cable conductor type: copper core or aluminum core

Characteristic

· Can provide fully shielded and fully sealed separable connections.

· It can be used in underwater or other harsh environments for a long time.

· There is no minimum phase distance requirement.

· It can be installed horizontally, vertically or at any angle.

· It can be touched with electricity and is safe for humans and animals.
