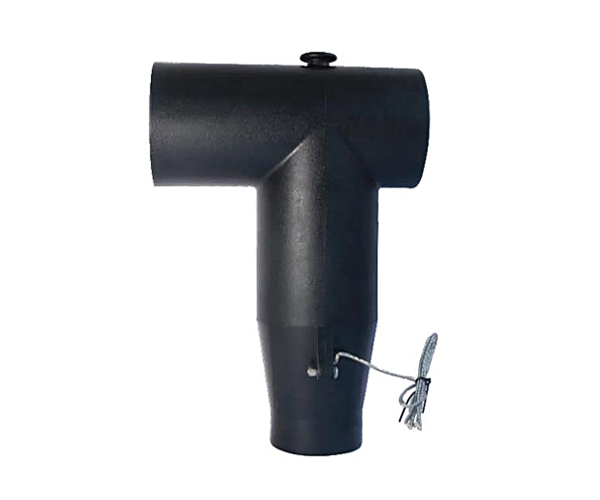

Product Model : DQJ-624
Product Applications : Connecting with 630A prefabricated cable front-joint, it can provide overvoltage protection for looped network switchgear,transformer,cable tapping box and other electrical equipment.
Product F
Category：15/24kV 630A separable cable connector series
Order onlineApplication
●Through the 630A prefabricated cable front connector, single-phase or three-phase cables can be connected to switch cabinets, transformers, cable junction boxes and other electrical equipment.
●Suitable for indoor or outdoor installation.
●The highest system working voltage: 36kV.
●Continuous rated current: 630A.
●It can be extended to connect DHJ type rear connector or HBLQ type arrester to realize multi-channel installation or provide over-voltage protection.
●Cable characteristics:
-Extruded insulated power cable (XLPE, EPR, etc.)
-Cable conductor section: 35~ 500mm2
-Cable conductor type: copper core or aluminum core
Characteristic
●When matched with a suitable casing, a fully shielded and fully sealed separable connection can be provided.
●It can be used in underwater or other harsh environments for a long time.
●There is no minimum phase distance requirement.
●It can be installed horizontally, vertically or at any angle.
●It can be touched with electricity and is safe for humans and animals.
