Application

●Through the expansion connection with the 630A prefabricated cable front connector, it can realize the multi-channel incoming and outgoing ring network connection of single-phase or three-phase cables with switch cabinets, transformers, cable junction boxes and other electrical equipment.

●Suitable for indoor or outdoor installation.

●The highest system working voltage: 24kV.

●Continuous rated current: 630A.

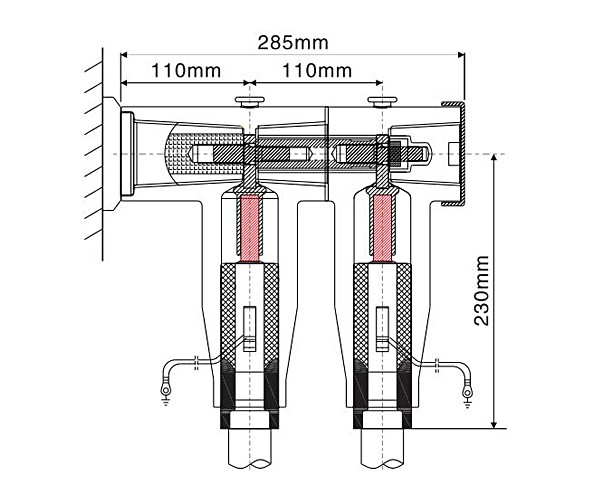

●It can be extended to connect DHJ type rear connector or HBLQ type arrester to realize multi-channel installation.

Or provide over-voltage protection.

●Cable characteristics:

-Extruded insulated power cable (XLPE, EPR, etc.)

-Cable conductor section: 35~ 500mm²

-Cable conductor type: copper core or aluminum core

Characteristic

●When matched with a suitable casing, a fully shielded and fully sealed separable connection can be provided.

●It can be used in underwater or other harsh environments for a long time.

●There is no minimum phase distance requirement.

●It can be installed horizontally, vertically or at any angle.

●It can be touched with electricity and is safe for humans and animals.
