Application

● Through the connection with the switch cabinet bushing, the connection between multiple switch cabinets can be realized.

● System working voltage: 15/24kV.

● Rated current: 630A/1250A.

Characteristic

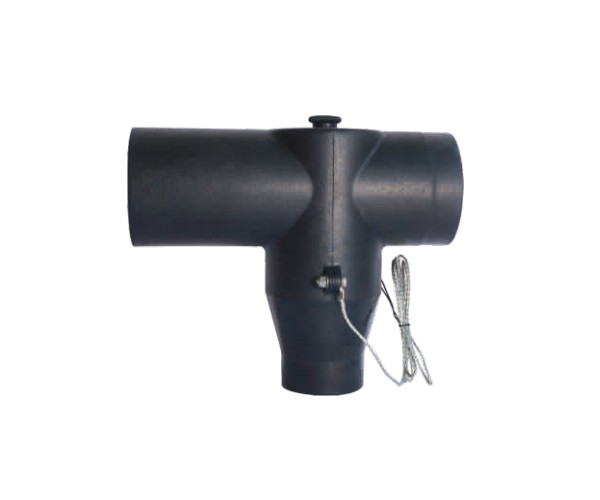

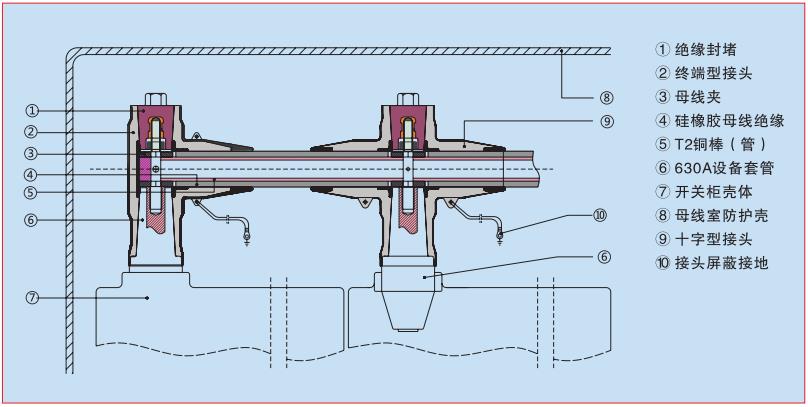

● When matched with a suitable casing, a fully shielded and fully sealed separable connection can be provided.

● Single pole, plug-in design.

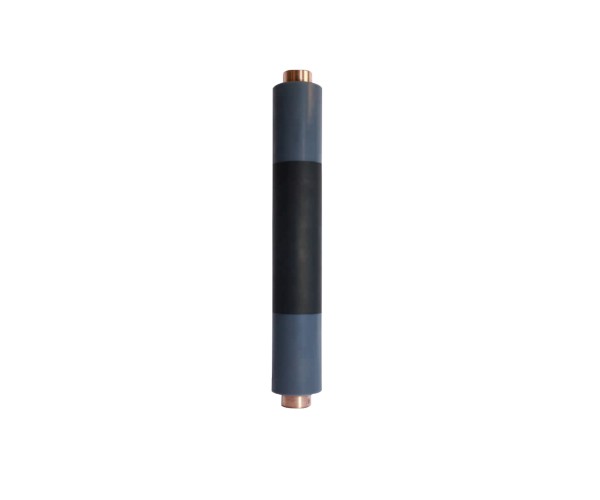

● The bus bar is composed of round copper rods (tubes), with a silicone rubber insulation layer on the outside.

● The busbar connection uses rubber insulated terminal connectors and cross connectors.

● The shielded bus has no minimum phase-to-phase distance requirement, and is not affected by pollution and condensation.

● The non-shielded bus bar needs to be equipped with a protective cover.

Ordering instructions

※The bus bar processing length L is based on the center distance between the two switchgear equipment bushings. Please be sure to provide parameters when ordering; if it is based on the bus bar length, please be clear.

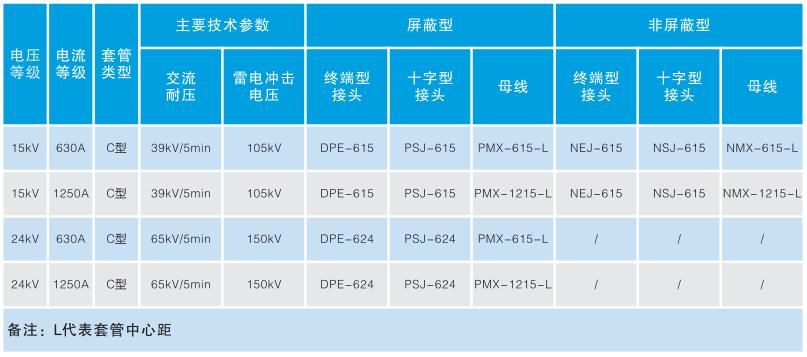

Connector and busbar selection table
