Application

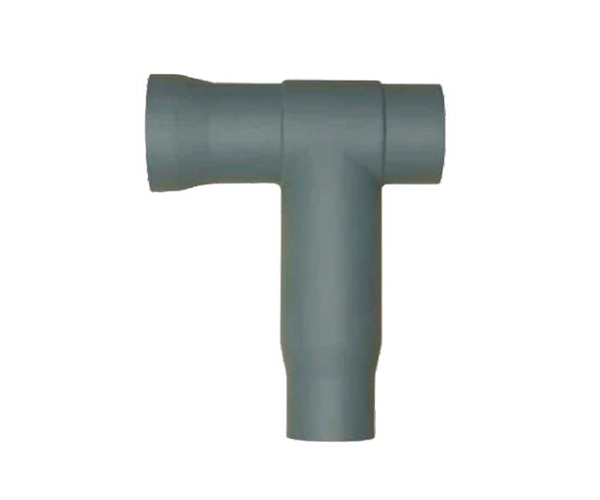

· Through the 630A prefabricated cable front connector, single-phase or three-phase cables can be connected to switch cabinets, transformers, cable junction boxes and other electrical equipment.

· Suitable for indoor or outdoor installation.

· The highest system working voltage: 15kV.

· Continuous rated current: 630A.

· It can be extended to connect DUC type rear connector or DCSA-10 type lightning arrester to realize multi-channel installation or provide over-voltage protection.

· Cable characteristics:

-Extruded insulated power cable (XLPE, EPR, etc.)

-Cable conductor section: 35~ 400mm²

-Cable conductor type: copper core or aluminum core

Characteristic

· When matched with a suitable casing, a fully sealed and separable connection can be provided.

· It can be used in underwater or other harsh environments for a long time.

· The distance between phases must be considered, and the center distance between phases must not be less than 100mm.

· It can be installed horizontally, vertically or at any angle.

· Do not touch with electricity, and must be protected by a metal shell when in use.
