Application

● Through the 250A prefabricated straight-through cable connector, single-phase or three-phase cables can be connected to switch cabinets, transformers, cable junction boxes and other electrical equipment.

● Suitable for indoor or outdoor installation.

● The highest system working voltage: 24kV.

● Continuous rated current: 250A.

● Cable characteristics:

- Extruded insulated power cable (XLPE, EPR, etc.)

- Cable conductor section: 35~ 120mm²

Characteristic

● When matched with a suitable casing, a fully shielded and fully sealed separable connection can be provided.

● It can be used in underwater or other harsh environments for a long time.

● DSC-224 straight-through connector has no minimum phase-to-phase distance requirement.

● It can be installed horizontally, vertically or at any angle.

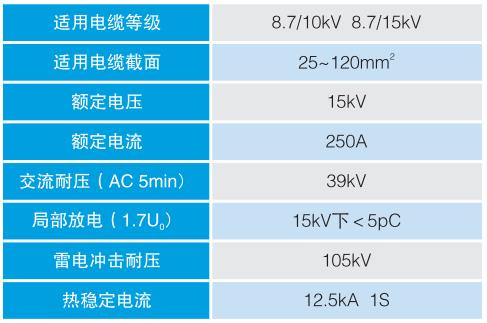

DSC-224 technical parameters
